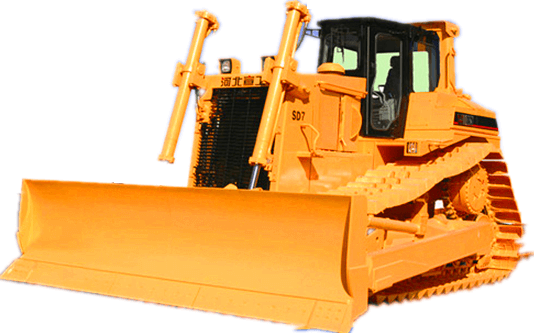

HBXG Wet Land Bulldozer
Model: SD7LGP
Features:
SD7LGP Wet land bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7LGP-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety and comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
SD7LGP is with lower ground pressure, it is an ideal machine used in offshore mud land, waste handling and swampland.
Main specifications:
Specifications | ||
Dozer | Tilt | |
Operation weight | kg | 25800 |
Operation weight(with ripper) | kg | 29700 |
Ground pressure | kPa | 43.5 |
Track gauge | mm | 2230 |
Min. ground clearance | mm | 484 |
Gradient | 30°/25° | |
Dozing capacity | m3 | 5.8 |
Blade width | mm | 4382 |
Max. digging depth | mm | 635 |
Overall Dimensions | mm | 5473*4382*3482 |
Overall Dimensions(with ripper) | mm | 7190*4328*3402 |
Engine | ||
Chongqing Cummins NTA855-C280S10 | ||
Rated revolution | rpm | 2100 |
Flywheel power | KW | 169 |
Max. torque | N.m/rpm | 1097/1500 |
Rated fuel consumption | g/KW.h | ≤235 |
Undercarriage system | ||
Type: The track is triangle shape. | ||
The sprocket is elevated. | ||
Number of track rollers (each side): 7 | ||
Pitch | mm | 216 |
Width of shoe | mm | 910 |
Gear-Forward | ||
1st | km/h | 0-3.9 |
2nd | km/h | 0-6.5 |
3rd | km/h | 0-10.9 |
Gear-Backward | ||
1st | km/h | 0-4.8 |
2nd | km/h | 0-8.2 |
3rd | km/h | 0-13.2 |
Implement hydraulic system | ||
Max. system pressure | Mpa | 18.6 |
Pump type: High pressure gears pump | ||
System output | L/min | 194 |
Driving system | ||
Torque converter: Torque converter is power separating hydraulic-mechanic type. | ||
Transmission: Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||
Steering clutch: The steering clutch is hydraulic pressed, non-constant engaged clutch. | ||
Steering brake: The braking clutch is hydraulic pressed by spring, separated hydraulic, constant meshed type. | ||
Final drive: The final drive is two-stage planetary reduction gear mechanism, splash lubrication. | ||
If you want to know more about HBXG wet land bulldozer SD7LGP, please send us an inquiry.
