QY25K-II
XCMG
| Quantity: | |
|---|---|
Description:

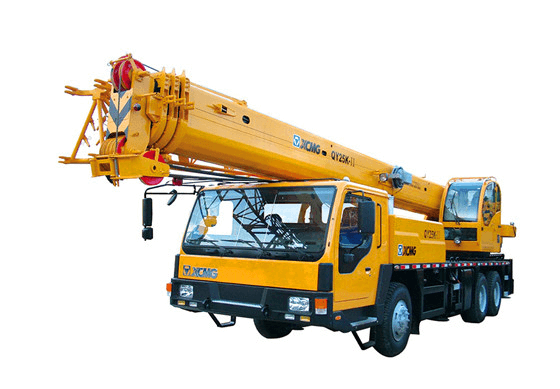

QY25K-II is XCMG designed 25 ton truck crane, it is with XCMG designed and produced truck chassis with full wide cab, drive/steer is 6X4.
It is with 4 section boom and 1 lattice jib.
Main features:
1, the boom arm length from the 10.6m ~ 33m upgrade 10.7m ~ 34m, the whole length of outriggers 1m, arm length overall than its competitors.
2, material from the Q550 steel boom upgrade BS700MC, lifting the whole extended boom average performance increase of 10 to 20% more than the same products of about 1-7%.
3, plug-arm head, boom shake reduction, side bending and torsion, stretching to improve ride comfort.
4, with a heavy weight increased from 5390kg to 5690kg, add 300kg, lifting machine to improve performance.
5, Vice-lifting rope extended 5 meters.
Main specifications:
Dimension | Unit | QY25K-II |
Overall length | mm | 12650 |
Overall width | mm | 2500 |
Overall height | mm | 3380 |
Weight | ||
Total weight in travel | kg | 29400 |
Front axle load | kg | 6200 |
Rear axle load | kg | 23200 |
Power of engine | ||
Engine model | SC8DK280Q3 | |
Engine rated power | kW/(r/min) | 206/2200 |
Engine rated torque | N.m/(r/min) | 1112/1400 |
Specifications in Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 21.5 |
Min. ground clearance | mm | 275 |
Approach angle | ° | 16 |
Departure angle | ° | 13 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | ≈37 |
Main performance | ||
Max. rated total lifting capacity | t | 25 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.065 |
Max. lifting torque | kN.m | 1010 |
Base boom | m | 10.7 |
Fully extended boom | m | 34.19 |
Fully extended boom+jib | m | 42.15 |
Longitudinal outrigger span | m | 5.14 |
Lateral outrigger span | m | 6 |
Working speed | ||
Boom luffing time | s | 75 |
Boom full extension time | s | 100 |
Max. swing speed | r/min | ≥2.5 |
Max. speed of main winch (single rope) | m/min | ≥120 |
Max. speed of aux. winch (single rope) | m/min | ≥120 |
Photos:
If you want more information like load chart, photos, price of XCMG 25 ton truck crane QY25K-II, please contact us or send inquiry.
