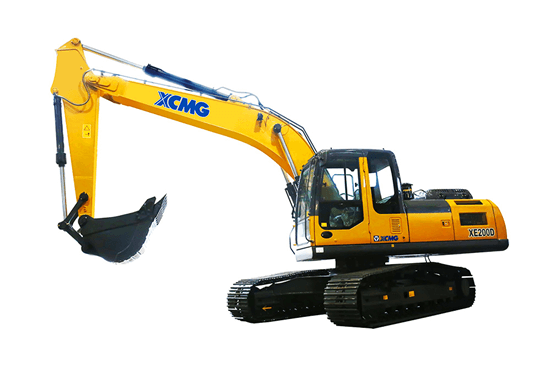

XE200D Crawler Excavator

XCMG crawler excavator model XE150D

XCMG crawler excavator

Model: XE200D

Main specifications:

ITEM		Unit	XE200D
	Operating weight	kg	21500
	Standard bucket capacity	m³	0.9
Engine	Engine Model	/	ISUZU BB-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	135/2050
	Max. torque/speed	N.m	551/1600
	Displacement	L	6.494
Main Spec.	Travel speed	km/h	5.5/3.3
	Swing speed	r/min	13.3
	Max. gradeability	/	≤35
	Ground pressure	kPa	45.5
	Max.Bucket digging force	kN	138
	Max.arm crowd force	kN	103
	Max.traction force	kN	184
HYD System	Main pump	/	2 piston pumps
	Rate flow of main pump	L/min	2×206
	Max pressure of prime relief valve	MPa	31.5/34.4
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine lubrication	L	25
	Overall length	mm	9525
	Overall width	mm	2990
	Overall height	mm	3000
	Overall width of upperstructure	mm	2710
	Track length	mm	4270
	Overall width of undercarriage	mm	2990
	Crawler width	㎜	600
	Track wheelbase	mm	3462
	Crawler gauge	mm	2390
	Clearance under counter weight	mm	1050
	Ground clearance	mm	470
	Min.tail swing radius	mm	2750
Work Radius	Max. digging height	mm	9680
	Max. dumping height	mm	6800
	Max. digging depth	mm	6460
	8inch horizontal digging depth	mm	6470
	Max. vertical wall digging depth	mm	5695
	Max. digging reach	mm	9615
	Min. swing radius	mm	3530
Standard	boom length	mm	5680
	bucket arm length	mm	2910
	bucket load	m³	0.93
Options	boom length	mm	/
	bucket arm length	mm	2530
	bucket load	m³	1.0 earth bucket 0.8 rock bucket
