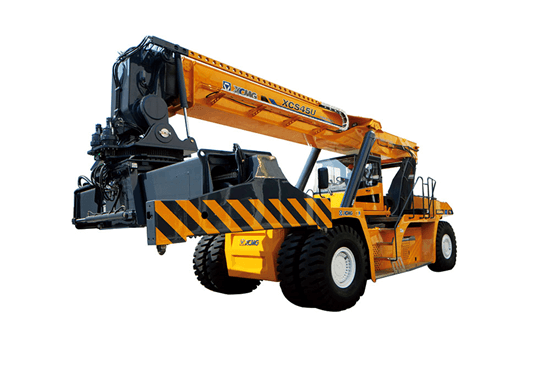

XCMG 45t Reach Stacker
Model: XCS45U
Main Specifications:
Item | Unit | Parameters |
Dimensions | ||
Overall lenth | mm | 11295 |
Overall width | mm | 6208 |
Overall height | mm | 4489 |
Wheelbase | mm | 6000 |
Track (front/rear) | mm | 3030/2750 |
Weight | ||
Curb mass | kg | 70995 |
Alxe load(no load)(front/rear) | kg | 33728/37267 |
Engine | ||
Model | - | Cummins QSM11 |
Rated output | kW | 250 |
Rated torque | N.m | 1136 |
Emission standard | - | USA EPA Tier 3 |
Max. drive speed(no load/full load) | km/h | 27/23 |
Min. turning diameter | m | 16.2 |
Max. gradeability | ° | 0.3 |
Min. ground clearance | mm | 400 |
Approach angle | ° | 17.5 |
Departure angle | ° | 26.5 |
Brake distance | m | 7 |
Working specifications | ||
Max. lift load | t | 45 |
Max. lit height | mm | 15100 |
Max. lift speed (no load/full load) | m/min | 350/200 |
Max. lowering speed (no load/full load) | m/min | 330/260 |
Stacking capacity | floors | 2005/5/4 |
If you want more details of XCMG 45 ton reach stacker, please send us an inquiry.
