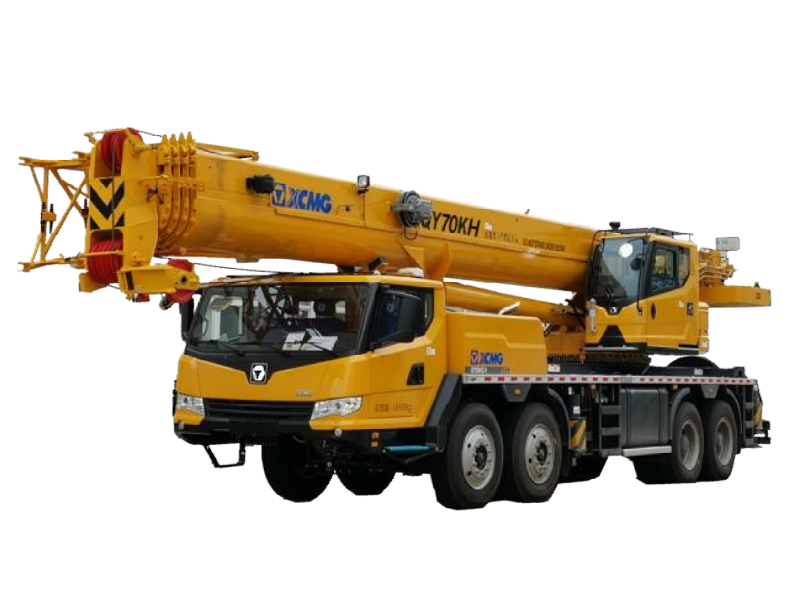

QY70KH Truck Crane
Keywords: XCMG truck crane, mobile crane, Max. Lifting capacity 70 ton
Main specifications:
Dimension | Unit | QY70K-I |
Overall length | mm | 14470 |
Overall width | mm | 2800 |
Overall height | mm | 3770 |
Weight | ||
Total weight in travel | kg | 43900 |
1/2 axle load | kg | 9050 |
3/4 axle load | kg | 129000 |
Power of engine | ||
Engine model | D10.38-50 | |
Engine rated power | kW/(r/min) | 276/2200 |
Engine rated torque | N.m/(r/min) | 1560-1200/1500 |
Specifications in Travel | ||
Max. travel speed | km/h | 90 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 314 |
Approach angle | ° | 20 |
Departure angle | ° | 15 |
Max. grade ability | % | 45 |
Fuel consumption for 100km | L | 40 |
Main performance | ||
Max. rated total lifting capacity | t | 70 |
Min. rated working radius | m | 3000 |
Turning radius at turntable tail | m | 4.115 |
Max. lifting torque | kN.m | 2176 |
Base boom | m | 12.7 |
Fully extended boom | m | 47 |
Fully extended boom+ jib | m | 62.5 |
Longitudinal outrigger span | m | 6.3 |
Lateral outrigger span | m | 7.9 |
Working speed | ||
Boom luffing time | s | ≤45 |
Boom full extension time | s | ≤107 |
Max. swing speed | r/min | ≥1.6 |
Max. speed of main winch (single rope) (no load) | m/min | ≥130 |
Max. speed of aux. winch (single rope) (no load) | m/min | ≥130 |
XCMG Old 70T truck crane model is QY70K-I, this new model QY70KH’s lifting performance is fully surpassed the old model.
If you want more information like load chart, photos, price of XCMG 70 ton truck crane QY70KH, please contact us or send inquiry.
