BD150W
Availability: | |
---|---|
Quantity: | |

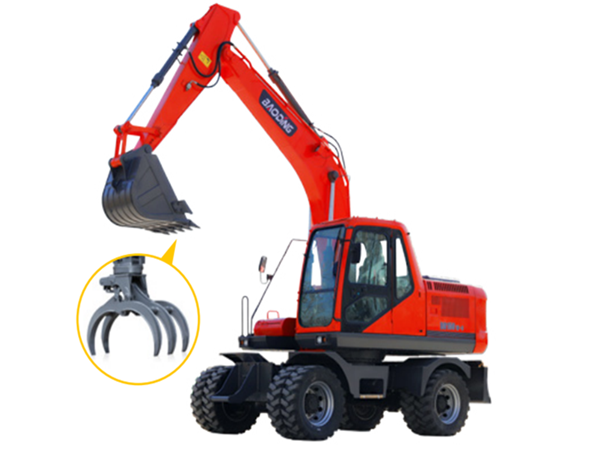

BD150W Grab Excavator
Keywords: grab excavator, wood grab, wheel grab
Main specifications:
Model: BD150W | |
Engine | |
Engine brand | Yuchai / Cummins |
Engine type | EFI, China III standard |
Engine power | 103 KW / 119 KW |
Engine speed | 2200 rpm |
Hydraulic system | Imported variable plunger pump |
Air conditioner | cold & hot wind |
Dimensions | |
Total length | 7250 mm |
Total width | 2495 mm |
Total height | 3125 mm |
Boom length | 4300 mm |
Stick length | 2100 mm |
Wheel base | 1902 mm |
Wheel Track | 2770 mm |
Counter-Weight ground clearance | 1240 mm |
Min.ground clearance | 320 mm |
Specifications | |
Walking speed-Low | 10 km/h |
Walking speed-High | 35 km/h |
Slewing speed | 14 rpm |
Rated. flow | 2-176L/min |
Grade ability | 30° |
Max. grab height | 6850 mm |
Max. grab reach (horizontal) | 8250 mm |
Max. grab weight | 2000 kg±5% |
operation weight | 15000kg±10% |
Baoding brand multi-function wheel wood grabber is a multi-function and practical special operation vehicle with grabbing function as the main function and supplemented by other functions. The main features of this product are heavy lifting, high snatch, sufficient power, low fuel consumption, fast vehicle operation speed and high reliability. At present, this series product is widely used in agriculture, forestry, water conservancy, energy, transportation and construction engineering.
If you want more information, photos, price of BD150W wheel grab excavator, please contact us or send an inquiry.
