BD80W
| Quantity: | |
|---|---|

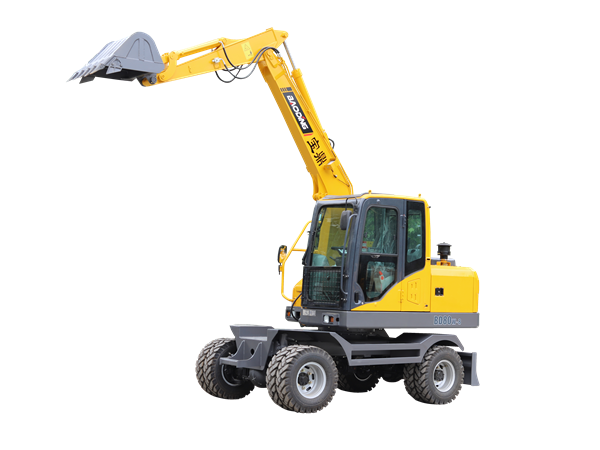

BD80W Grab Excavator
Keywords: grab excavator, wood grab, wheel grab
Main specifications:
Model: BD80W | |
Engine | |
Engine brand | Yuchai |
Engine type | EFI, China III standard |
Engine power | 50 KW |
Engine speed | 2200 rpm |
Hydraulic system | Imported variable plunger pump |
Air conditioner | cold & hot wind |
Dimensions | |
Total length | 6100 mm |
Total width | 2140 mm |
Total height | 2850 mm |
Boom length | 3400 mm |
Stick length | 1900 mm |
Wheel base | 2380 mm |
Wheel Track | 1650 mm |
Blade width | 2020 mm |
Blade height | 490 mm |
Counter-weight ground clearance | 1005 mm |
Min.ground clearance | 280 mm |
Specifications | |
Walking speed | 35-40 km/h |
Slewing speed | 12rpm |
Working pressure | 21pa |
Rated flow | 154L/min |
Rated displacement | 65ml/r |
Grade ability | 31.5° |
Tire model | 825-16 |
Max. grab height | 4700 mm |
Max. grab reach (horizontal) | 6200 mm |
Max. grab weight | 700kg±5% |
operation weight | 7000kg±10% |
Baoding brand multi-function wheel wood grabber is a multi-function and practical special operation vehicle with grabbing function as the main function and supplemented by other functions. The main features of this product are heavy lifting, high snatch, sufficient power, low fuel consumption, fast vehicle operation speed and high reliability. At present, this series product is widely used in agriculture, forestry, water conservancy, energy, transportation and construction engineering.
If you want more information, photos, price of BD80W wheel grab excavator, please contact us or send an inquiry.
