HB50K
XCMG
| Quantity: | |
|---|---|

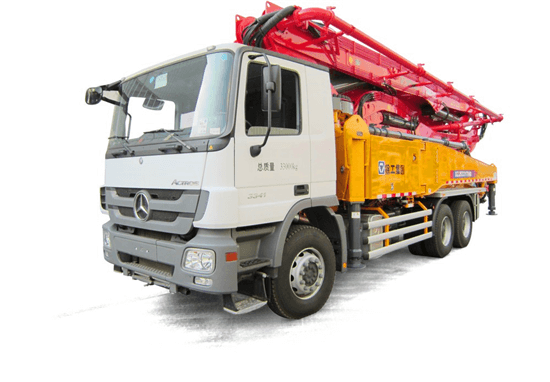

50m truck-mounted concrete pump
Model: HB50K
Main Specifications:
Item | Unit | HB50K |
Model | - | Actros3341 |
Manufacturer | - | BENZ |
Wheelbase | mm | 4500+1350 |
Output power | kW/(r/min) | 300/1800 |
Emissions standard | Euro IV | |
Dimensions (L*W*H) | mm | 12195*2500*3990 |
Max. total mass | kg | 33000 |
Theoretical throughput | m3/h | 120/170 |
Pumping concrete pressure | MPa | 12 / 8 |
Number of theoretical pumping | time/min | 18 / 27 |
Transport cylinder inner diameter*stroke | mm | ɸ 260*2000 |
Feeding height | mm | 1480 |
Structure type | 6RZ | |
Placing boom max height/depth/radius | m | 50/35.7/44.5 |
Turning angle of the boom | ° | ±270 |
High and low presure switch-over | ° | Auto |
If you want more information about XCMG 50m truck-mounted concrete pump HB50K, please send us an inquiry.
