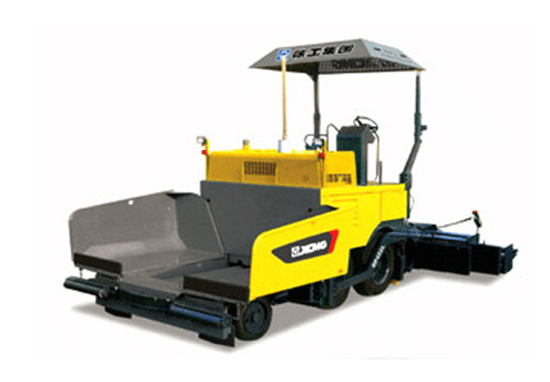

Asphalt Paver
Model: RP452L
Main Specifications:
Item | Unit | RP452L |
Working specifications | ||
Theoretical productivity | t/h | 240 |
Max. pave width | m | 4.5 |
Max. pave thickness | mm | 150 |
Max. pave speed | m/min | 13 |
Flatness | mm/3m | 3 |
Density | % | ≥80 |
Dense uneven rate | % | ≤5 |
Drive specifications | ||
Max. speed | km/h | 13 |
Drive type | - | tire type |
Grade ability | % | 20 |
Min. turning radius | tire type | 16 |
Driving brake | - | static hydraulic-Multi - disc brakes |
Parking brake | - | wet type-multi disc brakes |
Braking distance | tire type | 4.7 |
Tire size | tire type | 974 |
Distribute material specifications | ||
Structure type | - | feed material Linkage |
Driven type | - | Axle type HYD drive |
Scraper delivery speed | m/min | 0-30 |
Spiral feed speed | r/min | 0-73 |
Spiral diameter | mm | 360 |
Lubrication method | - | manual |
Screed performance parameters | ||
Assembly form | - | HYD telescopic |
Basic width | m | 2 |
Compact device | - | Off-center vibrating |
heating method | - | Gas heating |
Vibrating trip | mm | / |
Vibrating speed | r/min | / |
Vibration frequency | Hz | 6-42 |
Dumping range | % | 0-+3 |
Weight | ||
Main machine weight | kg | 11500 |
Max. working weight | kg | 12000 |
Structure specifications | ||
Dimensions | mm | 5690*2070*3590 |
Ground area | mm | / |
Hopper capacity | t | 12 |
Hopper width | mm | 3000 |
Hopper length | mm | 1740 |
Engine | ||
Model | - | YUCHAI YC4D95Z-T21 |
Output/speed | kW/(r/min) | 70/2200 |
Displacement | - | Euro II |
Fuel tank capacity | L | 130 |
If you want to know more about XCMG asphalt paver RP452L, please send us an inquiry.
