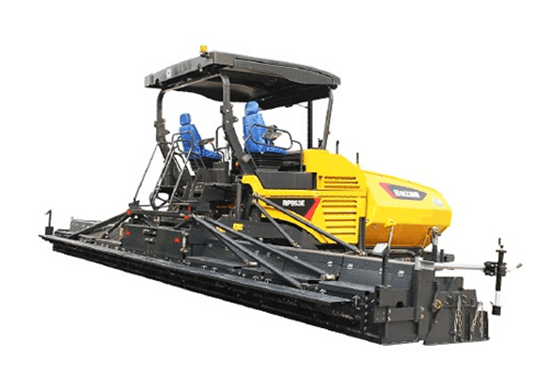

Asphalt Paver
Model: RP953E
Main Specifications:
Item | Unit | RP953E |
M250DG | ||
Basic pave width | m | 2.5 |
Max. pave width | m | 10.5 |
Max. pave thickness | mm | 400/500 |
Working speed | m/min | 0-18 |
Drive speed | km/h | 0-3 |
Theoretical productivity | t/h | 900 |
Hopper capacity | t | 15 |
Gradeability | % | 20 |
Flatness | mm | 1.2 |
Cross slope error | % | ±0.02 |
Dumping range | % | -1-+4 |
Output/speed | kW | 162 |
Displacement | r/min | 2000 |
Dense uneven rate | r/min | 0-90 |
feed speed | m/min | 0-24 |
Vibrating speed | r/min | 0-1500 |
Vibrating range | mm | 5 |
Screed heating method | / | Gas heat |
Dimensions | mm | 6610*2600*3950 |
Main machine weight | t | 22-30 |
Input material level control mode | / | Ultrasonic sensing automatic control |
Automatic leveling control | / | Analog leveling machine |
If you want to know more about XCMG asphalt paver RP953E, please send us an inquiry.
