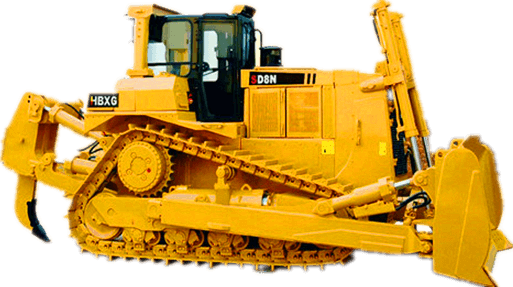

HBXG Bulldozer
Model: SD8N
Features:
SD8N bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. It is equipped with power separating hydraulic-mechanic type Torque converter, planetary, power shift and one lever control transmission. SD8N bulldozer equipped with integrated hydraulic system, electric monitoring, SD8N bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.
Main specifications:
Specifications | ||
Dozer | Tilt | |
Operation weight(with ripper) | kg | 37300 |
Ground pressure | kPa | 94 |
Track gauge | mm | 2083 |
Min. ground clearance | mm | 556 |
Gradient | 30°/25° | |
Dozing capacity | m3 | 11.24 |
Blade width | mm | 3940 |
Max. digging depth | mm | 582 |
Overall Dimensions(with ripper) | mm | 7930*3940*3549 |
Engine | ||
Cummins QSNT-C345 | ||
Rated revolution | rpm | 2100 |
Flywheel power | KW | 257 |
Torque storage coefficeient | ≥20% | |
Undercarriage system | ||
Type: The track is triangle shape. | ||
The sprocket is elevated elastic suspended. | ||
Number of track rollers (each side): 8 | ||
Pitch | mm | 216 |
Width of shoe | mm | 560 |
Gear-Forward | ||
1st | km/h | 0-3.5 |
2nd | km/h | 0-6.2 |
3rd | km/h | 0-10.8 |
Gear-Backward | ||
1st | km/h | 0-4.7 |
2nd | km/h | 0-8.1 |
3rd | km/h | 0-13.9 |
Implement hydraulic system | ||
Max. system pressure | Mpa | 20 |
Pump type: Gears oil pump | ||
System output | L/min | 220 |
Control Type: Pilot control | ||
Driving system | ||
Torque converter: Torque converter is power separating hydraulic-mechanic type. | ||
Transmission: Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||
Steering clutch: The steering clutch is hydraulic pressed, non-constant engaged clutch. | ||
Steering brake: The braking clutch is pressed by spring, separated hydraulic, constant meshed type. | ||
Final drive: The final drive is two-stage planetary reduction gear mechanism, splash lubrication. | ||
If you want to know more about HBXG bulldozer SD8N, please send us an inquiry.
