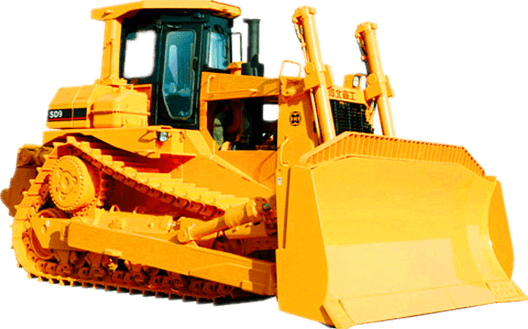

HBXG Bulldozer
Model: SD9
Features:
SD9 bulldozer is elevated sprocket track type bulldozer with power shift and hydraulic controlled. It boasts efficient torque divider, single lever operated planetary gear transmission and pilot boosted implement control system. The elevated sprocket and modular design promote the power system life and convenience to maintenance. The man-machine engineering control system makes the dozer perform more easy, convenience and accurately. The electric monitored advanced ROPS is up to the international manufactured standard.
It can be equipped with Cummins electrical monitored engine from USA. It integrates the electrical controlled fuel injection system and the air-air media cooling element, which ensures the exhaustion up to the Tier3 standard, and makes the fuel consumption more lower and power output much stronger.
Main specifications:
Specifications | ||
Dozer | Tilt | |
Operation weight | kg | 44588 |
Operation weight(with ripper) | kg | 48888 |
Ground pressure | kPa | 102 |
Ground pressure(with ripper) | kPa | 112 |
Track gauge | mm | 2250 |
Min. ground clearance | mm | 517 |
Gradient | 30°/25° | |
Dozing capacity | m3 | 13.5 |
Blade width | mm | 4314 |
Max. digging depth | mm | 614 |
Overall Dimensions | mm | 6592*4314*3970 |
Overall Dimensions(with ripper) | mm | 8478*4314*3970 |
Engine (may be choosed) | ||
Option 1: Chongqing Cummins KTA19-C525 | ||
Rated revolution | rpm | 1800 |
Flywheel power | KW/HP | 316/430 |
Torque storage coefficient | 18% | |
Option 2: Original Cummins QSX15 | ||
Rated revolution | rpm | 1800 |
Flywheel power | KW/HP | 316/430 |
Torque storage coefficient | 18% | |
Undercarriage system | ||
Type: The track is triangle shape. | ||
The sprocket is elevated elastic suspended. | ||
Number of track rollers (each side): 8 | ||
Pitch | mm | 240 |
Width of shoe | mm | 610 |
Gear-Forward | ||
1st | km/h | 0-3.9 |
2nd | km/h | 0-6.7 |
3rd | km/h | 0-12.2 |
Gear-Backward | ||
1st | km/h | 0-4.8 |
2nd | km/h | 0-8.5 |
3rd | km/h | 0-15.1 |
Implement hydraulic system | ||
Max. system pressure | Mpa | 18.3 |
Pump type: Double vane pump | ||
System output | L/min | 300 |
Driving system | ||
Torque converter: Torque converter is power separating hydraulic-mechanic type | ||
Transmission: Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||
Steering clutch: The steering clutch is hydraulic pressed, usually separated clutch. | ||
Steering brake: The braking clutch is pressed by spring, separated hydraulic, constant meshed type. | ||
Final drive: The final drive is two-stage planetary reduction gear mechanism, splash lubrication. | ||
If you want to know more about HBXG bulldozer SD9, please send us an inquiry.
