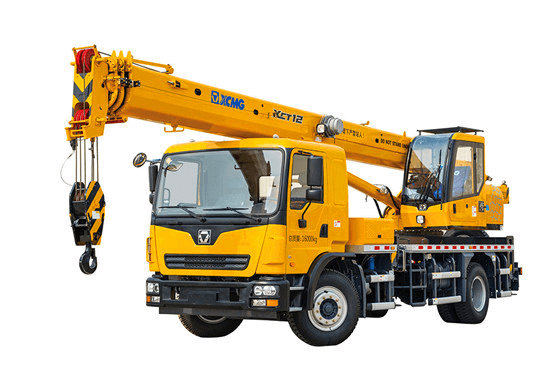

XCMG 12 ton national heavy truck crane XCT12

XCMG 12 ton truck crane model XCT12, Max lift capacity: 12 ton

  • XCT12
  • XCMG
Quantity:

Description:

XCT12 is XCMG designed 12 ton truck crane, it is XCMG G generation truck cranes with Euro 4/5 standard engine.

Main features:

1.XCT12 with the industry with the tonnage of the longest product 4 30.5m main boom, H-type outriggers, lifting capacity and operating range of a comprehensive leading industry at the same level products;

2. Innovative veneer boom and compact boom-tail structure, lap than the industry's largest, stronger boom bearing capacity;

3. New power transmission system, full synchronous with over-speed gearbox, single-stage deceleration bridge, 100 km fuel consumption 25L, down more than 16%, the maximum speed of 90km / h, an increase of 12%

4. Quantitative valve valve control open center mechanical control hydraulic system, increase the swing buffer, free sliding function, the system micro-movement is good, faster, more perfect control experience;

5. Rotation minimum stable speed of 0.5 ° / s, lifting the lowest stable speed 3m / min, accurate lifting;

6. Integrated bus panel, equipped with 5-inch color display, real-time display of working status;

7. luxurious full-head cab, with sleeper, air-conditioned three-dimensional air supply.



Main specifications:

Technical specifications of travel state

category

Item

Unit

Data

Weight

Total weight

kg

16000

Power

Engine Model

\

SC7H230Q4 / WP6.220E40

Engine output

kw/(r/min)

170/2300 | 162/2300

Travel

Max. speed

km/h

90

Min. turning diameter

m

18

Min. ground clearance

mm

250

Max. gradeability

%

41



Technical specifications of crane operation

category

Item

Unit

Data

Lift

Max. lift capacity

t

12

Max. lift moment

t.m

48.25

Min. working radius

m

3

Boom length

Base boom

m

9.45

longest main boom

m

30.5

Boom+Jib

m

30.5+7

Jib install angle

°

0

Speed

Main boom luffing time


s

38

Main boom extend/shrink time


s

58/35

Slewing speed

r/min

3

lift speed

Main winch no load

m/min

130

Vice winch no load

m/min

130


Photos:

XCT12 (4).jpg



If you want more information like load chart, photos, price of XCMG 12 ton truck crane XCT12L4, please contact us or send inquiry.
