QY16B.5
XCMG
Description:

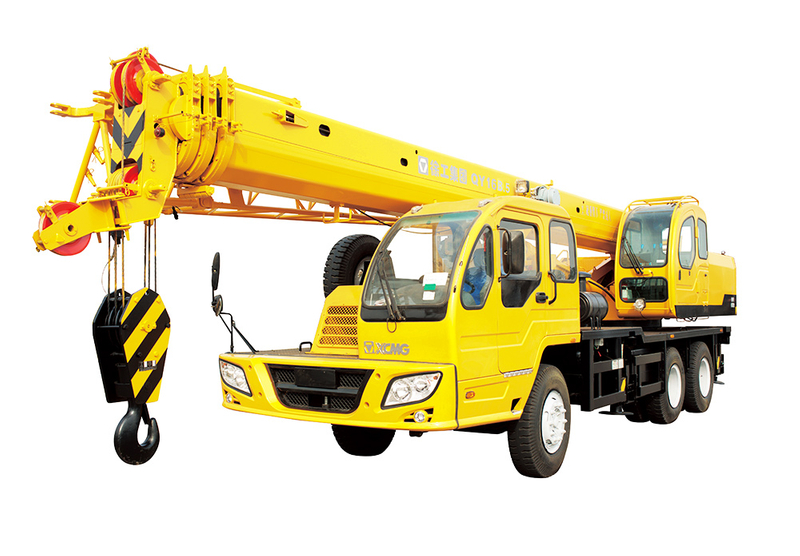

QY16B.5 is 16 ton XCMG crane mobile, it is with XCMG designed and produced truck chassis with left side cab, drive/steer is 6X4X2.
Its crane operation is mechanical control by five joysticks.
Main features:
1, the boom arm length from the 9.8 ~ 30.5m upgrade to 9.8 ~ 31m, jib fully extended
length of 0.5m, full arm length than its competitors.
2, lifting arm extended octagonal cross-section, lifting the whole performance an average of
3 to 10 percent over the same products for about 5%.
3, Vice boom extended from 7.5m to 8.15m, arm length increased 0.65m, industry-leading
performance.
4, plug-arm head, boom shake reduction, side bending and torsion, stretching to improve
ride comfort.
5, with Built-in winch body, dual independent winch body, single stage to multi-stage
transmission gear, with unique quick release feature of gravity to achieve the freedom of an
empty hook lowering speed, efficiency, energy saving and practical.
6, the engine power than similar products in the same industry, the biggest, the best
dynamic performance of the machine.
Main specifications:
Dimension | Unit | QY16B.5 |
Overall length | mm | 12110 |
Overall width | mm | 2500 |
Overall height | mm | 3250 |
Weight | ||
Total weight in travel | kg | 24000 |
Front axle load | kg | 6400 |
Rear axle load | kg | 17600 |
Power of engine | ||
Engine model | SC8DK230Q3 | |
Engine rated power | kW/(r/min) | 170/2200 |
Engine rated torque | N.m/(r/min) | 830/1400 |
Specifications in Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | mm | 20000 |
Min. ground clearance | mm | 270 |
Approach angle | ° | 21 |
Departure angle | ° | 10 |
Max. grade ability | % | 24 |
Fuel consumption for 100km | L | ≤35 |
Main performance | ||
Max. rated total lifting capacity | t | 16 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 3.14 |
Max. lifting torque | KN.m | 720 |
Base boom | m | 9.9 |
Fully extended boom | m | 31.1 |
Fully extended boom＋jib | m | 39.4 |
Longitudinal outrigger span | m | 4.6 |
Lateral outrigger span | m | 5.4 |
Working speed | ||
Boom luffing time | s | 60 |
Boom full extension time | s | 95 |
Max. swing speed | r/min | 2.5 |
Main winch full load/no load (single rope) | m/min | 54/100 |
Aux. winch full load/no load (single rope) | m/min | 54/100 |
If you want 16 ton XCMG crane mobile price, please contact us or send inquiry.
Also we have more specifications, photos, load charts of XCMG QY16B.5 crane mobile, waiting for your contact.
