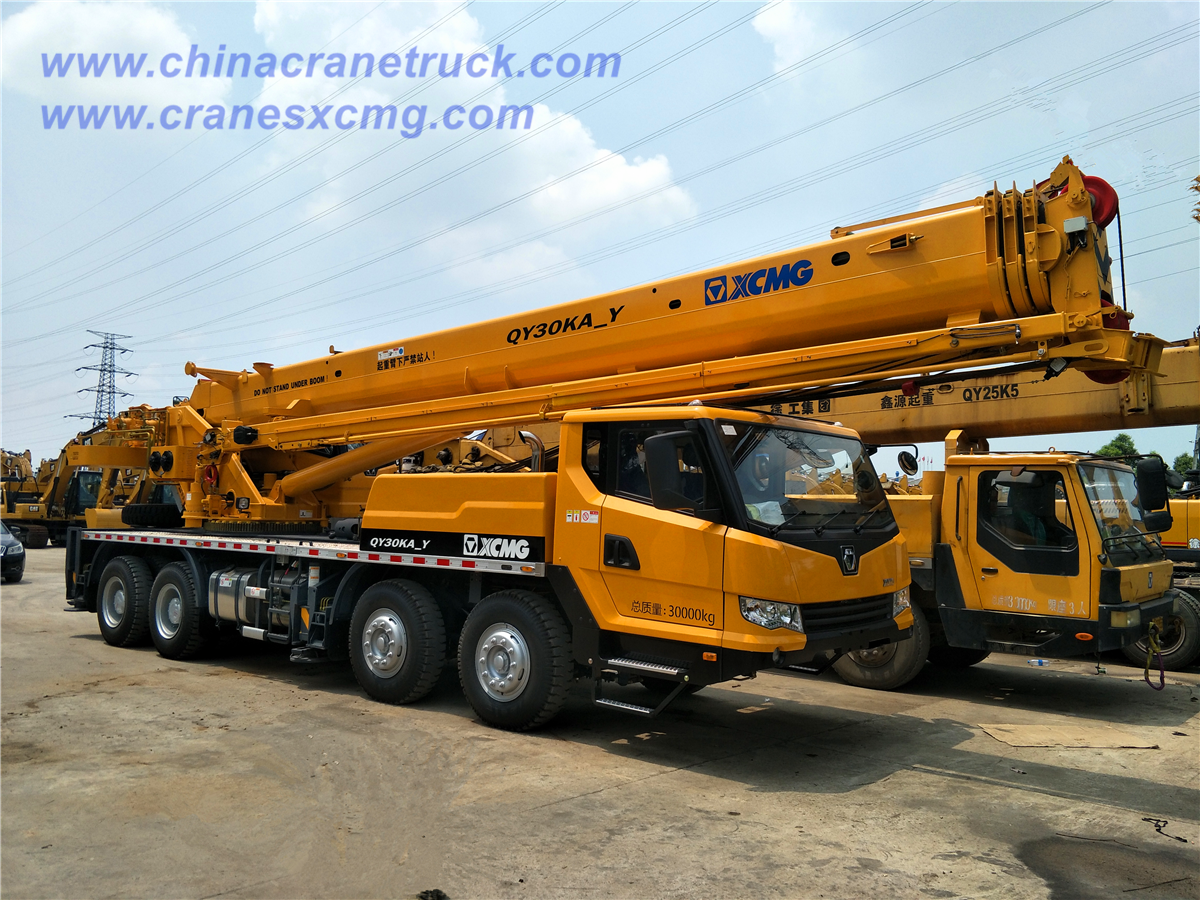

XCMG Right Hand Drive 30 ton truck crane
Model: QY30KA_Y
Main specifications:
Dimension | Unit | QY30KA_Y |
Overall length | mm | 12800 |
Overall width | mm | 2500 |
Overall height | mm | 3890 |
Weight | ||
Total weight in travel | kg | 30000 |
Front two axle load | kg | 5750 |
Rear two axle load | kg | 9250 |
Power of engine | ||
Engine model | SC8DK280Q3 | |
Engine rated power | kW/(r/min) | 204/2200 |
Engine rated torque | N.m/(r/min) | 1104/1400 |
Specifications in Travel | ||
Max. travel speed | km/h | 80 |
Min. turning diameter | m | 22 |
Min. ground clearance | mm | 275 |
Approach angle | ° | 20 |
Departure angle | ° | 16 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | ≈37 |
Main performance | ||
Max. rated total lifting capacity | t | 30 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.24 |
Max. lifting torque | kN.m | 1103 |
Base boom | m | 10.8 |
Fully extended boom | m | 34 |
Fully extended boom+jib | m | 47.8 |
Longitudinal outrigger span | m | 5.14 |
Lateral outrigger span | m | 6.1 |
Working speed | ||
Boom luffing time | s | 35 |
Boom full extension time | s | 55 |
Max. swing speed | r/min | 2.5 |
Max. speed of main winch (single rope) (no load) | m/min | 130 |
Max. speed of aux. winch (single rope) (no load) | m/min | 130 |
If you want more information like load chart, photos, price of XCMG 30 ton right hand drive truck crane QY30KA_Y, please contact us or send an inquiry.
