QY35K5
XCMG
| Quantity: | |
|---|---|
Description:

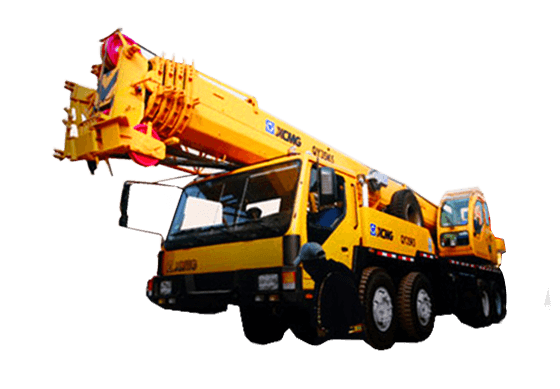

QY35K5 is 35 ton XCMG jib crane, it is with XCMG designed and produced truck chassis with full wide cab, drive/steer is 8X4X4.
It is with 5 section boom and 1 lattice jib.
Main features:
1、Boom design is compact boom end technology，Boom length 10.5m～39.6m，longer than other manufactures in China.
2、The model is made by special truck crane chassis, using a high-power environmentally engine，output 235KW/2200rpm，torque 1250N.m/1400 rpm，Greatly improve the overall driving performance, grade ability can be 40%.
3、Main and auxiliary hoisting mechanism can achieve heavy low-speed and light-load high-speed, high efficiency.
4、Has five sections octagon large arc Telescopic Boom, two side-mounted jib, single cylinder front support, fully hydraulic drive, double-H outrigger.
5、Perfect safety protection device, equipped with automatic load moment limiter, overload and over-roll protection device, which greatly improves the security of operations.
6、Ergonomically designed two-bedroom, in line with ISO standards, with the car air conditioner. Luxury cab is the whole sight cab, spacious and comfortable, with a shock absorber adjustable driver's seat, which can effectively reduce or offset harmful vibration, reduce fatigue. Control room to the right of resettlement style, with an LCD display monitor, a variety of operating status at a glance.
Main specifications:
Dimension | Unit | QY35K5 |
Overall length | mm | 12620 |
Overall width | mm | 2500 |
Overall height | mm | 3350 |
Weight | ||
Total weight in travel | kg | 36930 |
Front axle load | kg | 12330 |
Rear axle load | kg | 24600 |
Power of engine | ||
Engine model | SC9DK320Q3 | |
Engine rated power | kW/(r/min) | 235/2200 |
Engine rated torque | N.m/(r/min) | 1250/1400 |
Specifications in Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 19.5 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 17 |
Departure angle | ° | 15.7 |
Max. grade ability | % | 40 |
Fuel consumption for 100km | L | 30 |
Main performance | ||
Max. rated total lifting capacity | t | 35 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.055 |
Max. lifting torque | kN.m | 1200 |
Base boom | m | 10.5 |
Fully extended boom | m | 39.6 |
Fully extended boom+ jib | m | 54.6 |
Longitudinal outrigger span | m | 5.35 |
Lateral outrigger span | m | 6 |
Working speed | ||
Boom luffing time | s | 68 |
Boom full extension time | s | ≤155 |
Max. swing speed | r/min | ≥2.5 |
Max. speed of main winch (single rope) (no load) | m/min | ≥130 |
Max. speed of aux. winch (single rope) (no load) | m/min | ≥130 |
If you want 35 ton XCMG jib crane price, please contact us or send inquiry.
Also we have more specifications, photos, load charts of XCMG QY35K5 jib crane, waiting for your contact.
