QY8B.5
XCMG
Description:

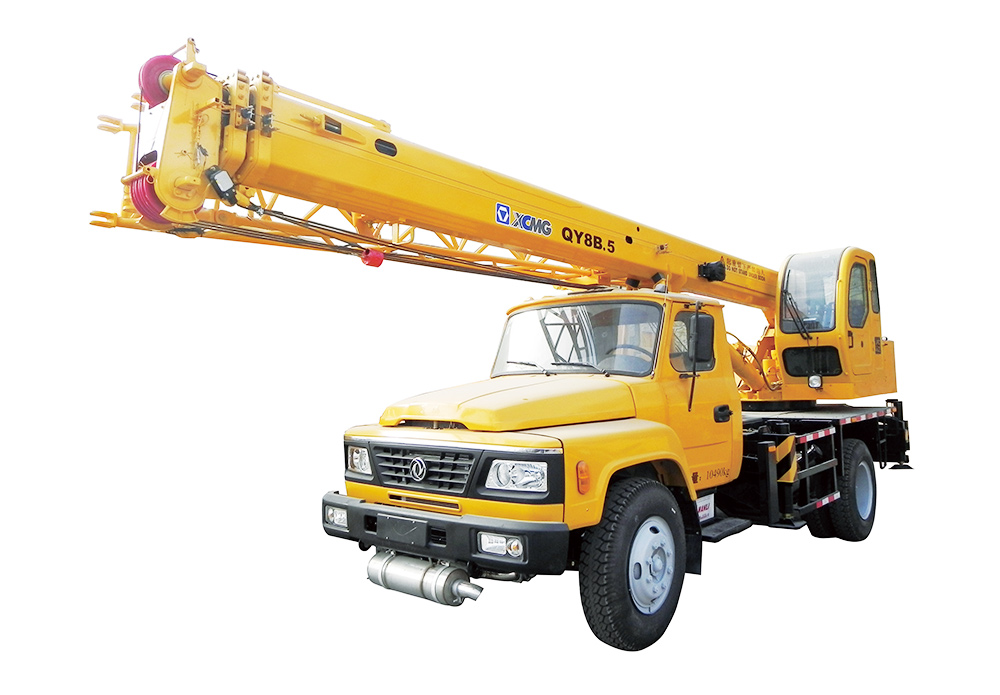

QY8B.5 is XCMG designed 8 ton mobile crane, it is the smallest crane model of XCMG mobile cranes.
It is with Dongfeng truck chassis with blue truck head, drive/steer is 4X2X2.

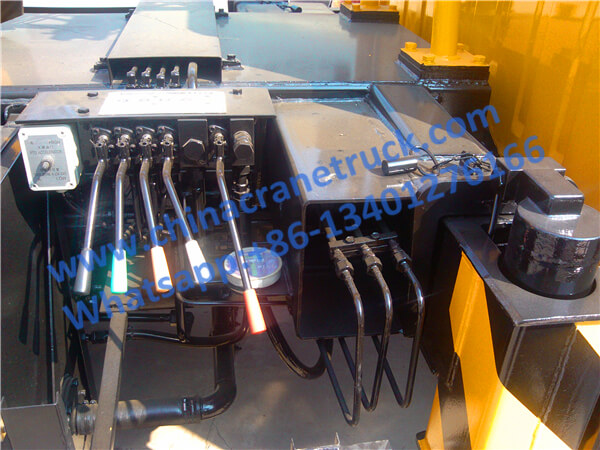

Its crane operation is mechanical control.
Main features:
1. Boom length is advanced from 7.2-16.6m to 7.8-19m, add 2.4m length, it is longer than other manufacturers’ 8 ton truck crane.

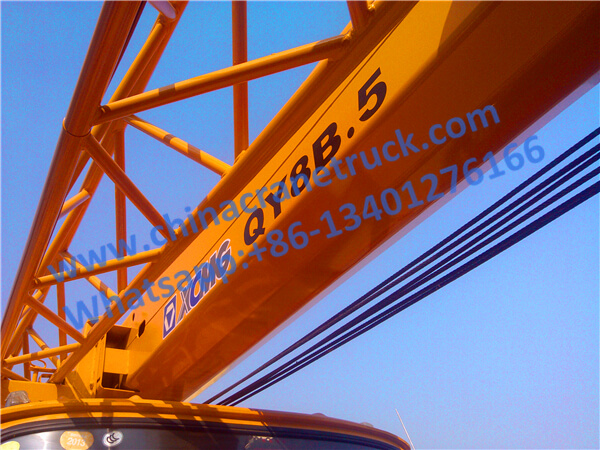

2. Main boom is hexagonal section and more wide and high, its lift capacity increase 3-10%, which is about 5% more than other manufacturers.
3. Jib length is advanced from 5.5 to 6.5m, it is trussed triangular structure.
4. Boom tip is insert type, it reduce the boom jitters, make it much stable.
5. Counter weight is advanced from 485kg to 645kg, the slewing center moved 120mm back forward, makes the whole crane much stable when lifting.
6. The outrigger vertical*horizontal span is advanced from 3.825*4.0 to 3.825*4.18, this also make the crane more stable.
Main specifications:
Dimension | Unit | QY8B.5 |
Overall length | mm | 9450 |
Overall width | mm | 2400 |
Overall height | mm | 3180 |
Weight | ||
Total weight in travel | kg | 10490 |
Front axle load | kg | 2800 |
Rear axle load | kg | 7690 |
Power of engine | ||
Engine model | YC4E140-30 | |
Engine rated power | kW/(r/min) | 105/2500 |
Engine rated torque | N.m/(r/min) | 500/1600 |
Specifications in Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | mm | 16000 |
Min. ground clearance | mm | 260 |
Approach angle | ° | 29 |
Departure angle | ° | 11 |
Max. grade ability | % | 28 |
Fuel consumption for 100km | L | 25.5 |
Main performance | ||
Max. rated total lifting capacity | t | 8 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | m | 2.254 |
Max. lifting torque | KN.m | 245 |
Base boom | m | 8.2 |
Fully extended boom | m | 19 |
Fully extended boom＋jib | m | 25.3 |
Longitudinal outrigger span | m | 3.825 |
Lateral outrigger span | m | 4.18 |
Working speed | ||
Boom luffing time | s | 28 |
Boom full extension time | s | 31 |
Max. swing speed | r/min | 2.8 |
Main winch single-pump/dual-pump converging (single rope) | m/min | 53/110 |
Photos:
If you want 8 ton XCMG mobile crane price, please contact us or send an inquiry. Also we have more photos, specifications of this model, waiting for your contact!
