XGC25T
XCMG
| Quantity: | |
|---|---|

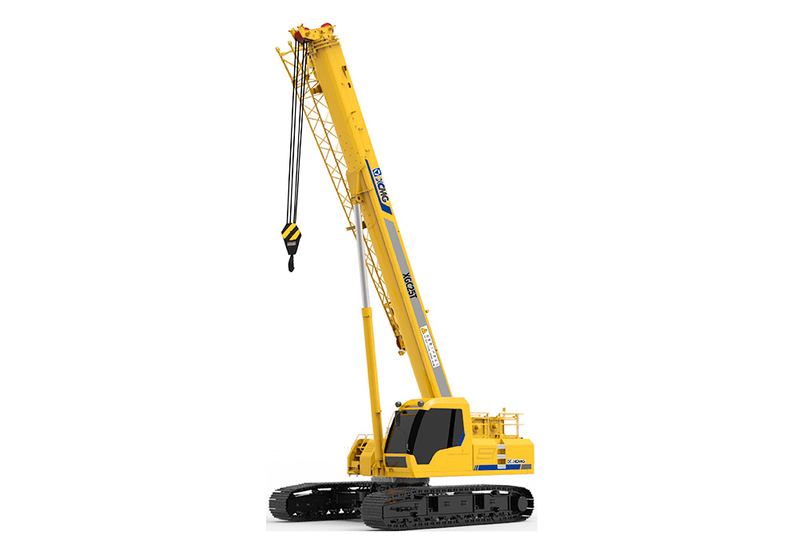

XCMG 25 ton telescopic crawler crane
Model: XGC25T
Main specifications:
Item | Unit | XGC25T |
Dimensions | ||
Overall length | mm | 12805 |
Overall width | mm | 2950 |
Overall height | mm | 3035 |
Central distance from drive roller to driven roller | mm | 4330 |
Track shoe width | mm | 700 |
Weight | ||
Total weight in travel | kg | 34960 |
Travel | ||
Max. travel speed with no load | km/h | 2.6 |
Max. travel speed with full load | km/h | 1.5 |
Min.ground clearance | mm | 357 |
Max. grade-ability | % | 45 |
Ground pressure | Mpa | 0.06 |
Noise at ear in the cab | dB(A) | 80 |
Power of engine | ||
Engine model | Cummins QSB6.7 | |
Engine rated power | kW | 142 |
Engine rated torque | r/min | 1800 |
Engine emission standard | - | EU Stage IIIA |
Tank capacity | ||
Hydraulic oil tank | L | 400 |
Fuel Tank | L | 450 |
Main performance | ||
Max. rated total lifting capacity | t | 25 |
Min. rated working radius | m | 3 |
Turning radius at turntable tail | mm | 3726 |
Base boom Max. load moment | kN.m | 970 |
Max. long boom Max. load moment | kN.m | 576 |
Lifting Height | ||
Base boom | m | 9.9 |
Fully extended boom | m | 32.3 |
Fully extended boom+ jib | m | 39.8 |
Boom Length | ||
Base boom | m | 10.6 |
Fully extended boom | m | 33 |
Fully extended boom+ jib | m | 41.15 |
Longitudinal outrigger span | m | 6.1 |
Jib install angle | (°) | 0/15/30 |
Working speed | ||
Boom raising time | s | 48 |
Boom full extension time | s | 56 |
Max. swing speed | r/min | 2.5 |
Max. hoisting speed of main winch (no load at the 4th layer) | m/min | 140 |
Max. hoisting speed of auxiliary winch (no load at the 4th layer) | m/min | 140 |
If you want more information like load chart, photos, price of XCMG 25 ton telescopic crawler crane XGC25T, please contact us or send inquiry.
