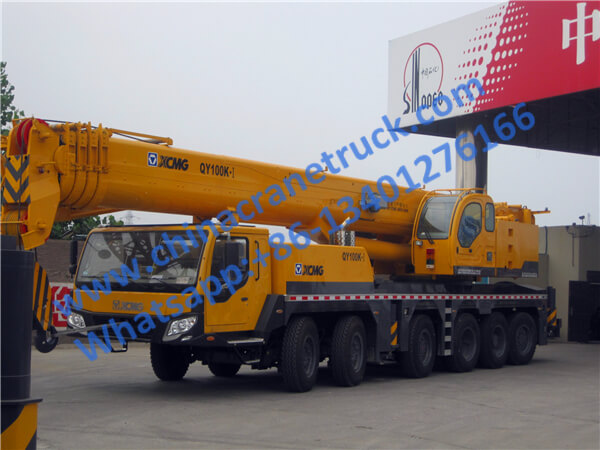

XCMG 100 ton heavy folding boom truck crane QY100K-I

XCMG 100 ton truck crane model QY100K-I, Max lift capacity: 100 ton

Model:
QY100K-I
Brand:
XCMG

Availability:

Quantity:



Inquire Add to Basket

Product Description

Description:

QY100K-I is XCMG designed 100 ton truck crane, it is with XCMG designed and produced truck chassis with full wide cab, drive/steer is 12X6X8.

It is with 5 section U shape boom and 2 section lattice jib.

Main features:

1. Unique double-longitudinal arm suspension system of rear axle, and axles 1, 2, 3 and 6 for steering, axles 3, 5 and 6 for driving. Carrier has features of flexible steering and powerful driving force.

2. Specialized boom of U-type cross section has features of light dead weight, better strength and strong lifting capacity.

3. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.

4. Unique self-assembled counterweight system with multi-variants contributes to approximate 420 lifting applications under boom working conditions.

5. Excellent structural member optimized technology, makes 100t lifting performance with 55t dead weight of crane possible.

6. Exclusive MATLAB simulation optimized control program and speed staging function contribute to smooth motion, stable control and high efficient operation.

7. Intelligent fault self-diagnosis system is available.

8. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.

Main specifications:

Dimension	Unit	QY100K-I
Overall length, width, height	mm	15600×3000×3850
Wheel base	mm	1420+2420+1800+1420+1505
Weight
Total weight in travel	kg	54900
Axle load
Axle 1	kg	750
Axle 2	kg	7500
Axle 3	kg	8300
Axle 4	kg	12000
Axle 5	kg	12000
Axle 6	kg	7600
Power of engine
Engine rated power	kW/(r/min)	360/1800
Engine rated torque	N.m/(r/min)	2200/1300
Engine rated speed	r/min	1800
Min. ground clearance	mm	310
Specifications in Travel
Approach angle	°	20
Departure angle	°	14
Braking distance (at 30km/h)	m	≤10
Max. grade ability	%	40
Min. turning diameter	m	24
Fuel consumption for 100km	L	70
Main performance
Max. rated total lifting capacity	m	100
Min. rated working radius		3
Turning radius at turntable tail
Counterweight	mm	4200
Aux. winch	mm	4590
Max. lifting torque		3450
Base boom	kN.m	3450(4m×88t)
Fully extended boom	kN.m	1950(24m×7.1t)
Fully extended boom＋ jib	kN.m	1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal	m	7.56
Lateral	m	7.6
Lifhting Height
Base boom	m	13.5
Fully extended boom	m	50.9
Fully extended boom＋ jib	m	70.4
Boom length	m	13.5
Fully extended boom	m	51
Fully extended boom＋ jib	m	51+18.1+4
Working speed
Jib setting angle	°	0、15、30
Boom luffing time	s	75
Boom
Boom telescoping time
Full extension	s	160
Max. swing speed	r/min	2
Outrigger extension/retraction time
Outrigger beam in extension/retraction	s	25/15
Outrigger jack in extension/retraction	s	45/25
Lifting speed (single rope, layer 4)
Main winch	m/min	105
Aux. winch	m/min	104
