QY20B.5
XCMG
Description:
QY20B.5 is XCMG designed 20 ton truck crane, it is with XCMG designed and produced truck chassis with left side cab, drive/steer is 6X4X2.
Its crane operation is mechanical control by five joysticks.
Main features:
1, boom length from 10.1m ~ 31.6m upgrade to 10.5m ~ 33m, boom extension of the total elongation of 1.4m.
2, the boom steel plate material from the Q550 upgrade to BS700MC, cross-section of the twelve-shaped, boom lift performance upgrade 5 to 13%, more than the same industry products about 3 to 10%.
3, insert the arm, to reduce the jitters, the next bend and twist, improve the ride comfort.
4, with weight from the original 2110 kg increased to 2510kg, improve the lifting performance of the machine.
5, the engine than the power in the same industry the largest in the same product, the best power performance.
6, the main, auxiliary hoisting wire rope each lengthened 5 meters.
Main specifications:
Dimension | Unit | QY20B.5 |
Overall length | mm | 12400 |
Overall width | mm | 2500 |
Overall height | mm | 3300 |
Weight | ||
Total weight in travel | kg | 26020 |
Front axle load | kg | 6900 |
Rear axle load | kg | 19120 |
Power of engine | ||
Engine model | SC8DK260Q3 | |
Engine rated power | kW/(r/min) | 192/2200 |
Engine rated torque | N.m/(r/min) | 1100/1400 |
Specifications in Travel | ||
Max. travel speed | km/h | 75 |
Min. turning diameter | m | 20 |
Min. ground clearance | mm | 270 |
Approach angle | ° | 21 |
Departure angle | ° | 11 |
Max. grade ability | % | 35 |
Fuel consumption for 100km | L | ≈35 |
Main performance | ||
Max. rated total lifting capacity | t | 20 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.385 |
Max. lifting torque | kN.m | 860 |
Base boom | m | 10.06 |
Fully extended boom | m | 32.76 |
Fully extended boom+jib | m | 42.12 |
Longitudinal outrigger span | m | 4.97 |
Lateral outrigger span | m | 5.4 |
Working speed | ||
Boom luffing time | s | 75 |
Boom full extension time | s | 95 |
Max. swing speed | r/min | 3 |
Max. speed of main winch (single rope) | m/min | 100 |
Max. speed of aux. winch (single rope) | m/min | 100 |

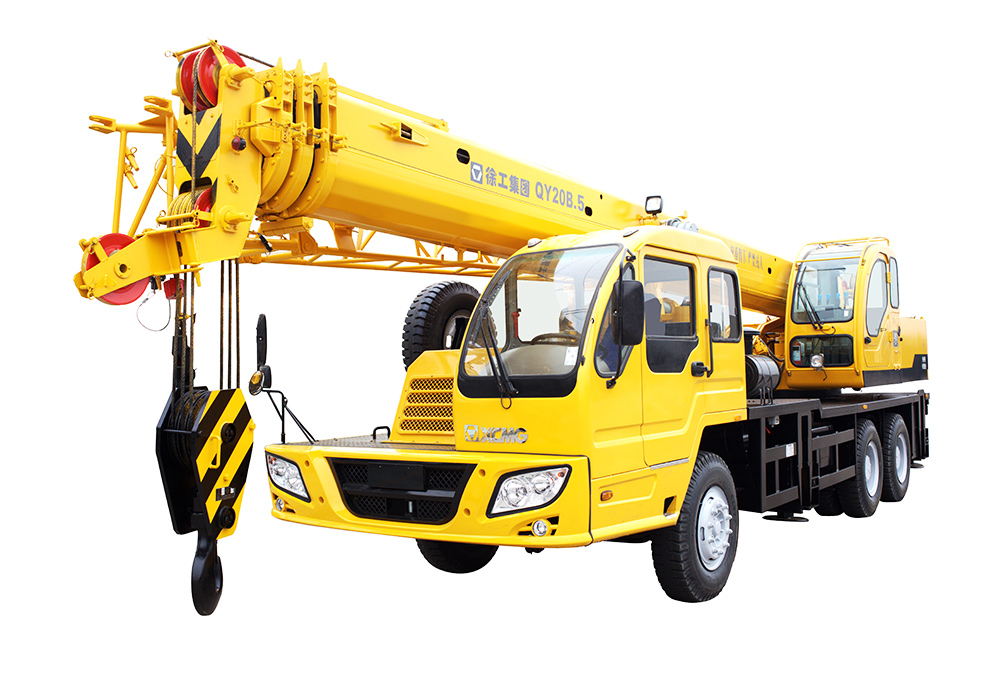

Photos:
If you want 20 ton XCMG mobile crane price, please contact us or send an inquiry. Also we have more photos, specifications of this model, waiting for your contact!
