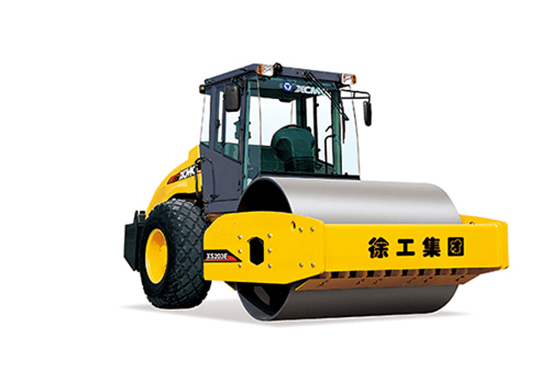

Full Hydraulic Single Drum Road Roller
Model: XS203
Main specifications:
Item | Unit | Data |
XS203 | ||
weight/Dimensions | ||
Max. Operating weight | kg | 20000 |
Front wheel weight | kg | 13500 |
Rear wheel weight | kg | 6500 |
Overall dimensions | mm | 6222*2430*3200 |
Engine | ||
model | BF6M2012-18T3R | |
rated turning speed | r/min | 2000 |
Output | kW | 134 |
Specifications | ||
Static line pressure | N/cm | 621 |
Vibration frequency | Hz | 33/28 |
Theoretical amplitude (high/low) | mm | 1.86/0.93 |
Centrifugal force(High/Low) | kN | 370/255 |
Speed range | ||
I | km/h | 0-4.2 |
II | km/h | 0-5.3 |
III | km/h | 0-6.7 |
IV | km/h | 0-10.4 |
Min. turning radius | mm | 6500 |
Gradeability | 50% | |
Steering angle | ±33 | |
Swing angle | ±10 | |
Wheelbase | mm | 3160 |
Min. ground clearance | mm | 466 |
Vibration wheel diameter | mm | 1600 |
Vibration wheel width | mm | 2130 |
If you want more information of XCMG XS203 full hydraulic single drum road roller, please send us an inquiry.
