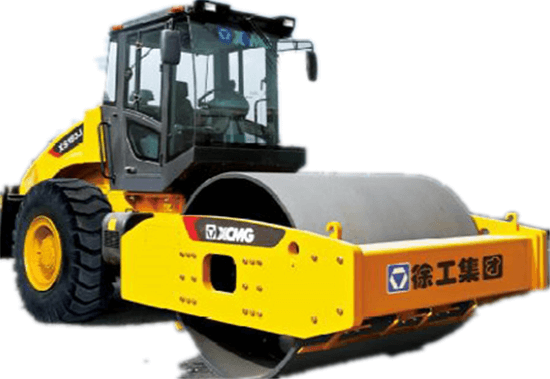

Single Drum Road Roller
Model: XS183J
Main specifications:
Item | Unit | Data |
XS183J | ||
weight/Dimensions | ||
Max. Operating weight | kg | 18000 |
Front wheel weight | kg | 9000 |
Rear wheel weight | kg | 9000 |
line pressure | N/cm | 422 |
Vibration frequency | Hz | 28 |
Theoretical amplitude (high/low) | mm | 1.9/0.95 |
Centrifugal force(High/Low) | kN | 320/160 |
Speed range | ||
Forward-I | km/h | 2.78 |
Forward-II | km/h | 5.43 |
Forward-III | km/h | 11.51 |
Backward-I | km/h | 2.75 |
Backward-II | km/h | 5.45 |
Backward-III | km/h | - |
Wheelbase | mm | 3180 |
Vibration wheel width | mm | 2130 |
Grade ability | 30% | |
Min. turning radius | mm | 6500 |
Vibration wheel diameter | mm | 1523 |
Min. ground clearance | mm | 448 |
Overall dimensions | mm | 6220*2300*3200 |
Engine | ||
model | SC7H160.3G2B | |
rated turning speed | r/min | 1800 |
Output | kW | 118 |
Specifications | ||
Vibration pressure | Mpa | 16 |
Steering pressure | Mpa | 16 |
If you want more information of XCMG XS183J single drum road roller, please send us an inquiry.
