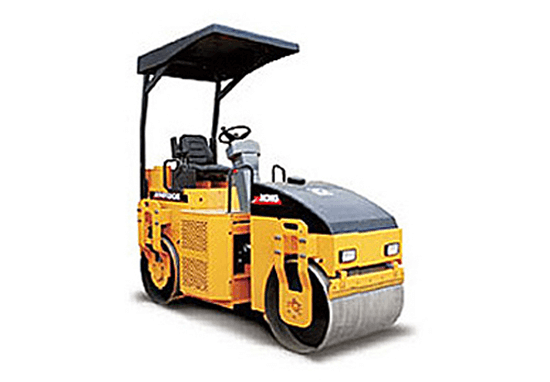

Small Double Wheel Road Roller
Model: XMR30E
Main specifications:
Item | Unit | Data |
XMR30E | ||
weight/Dimensions | ||
Max. Operating weight | kg | 3000 |
Front wheel weight | kg | 1200 |
Rear wheel weight | kg | 1800 |
Working specifications | ||
line pressure | N/cm | 110/175 |
Vibration frequency | Hz | 50 |
Theoretical amplitude | mm | 0.5 |
Centrifugal force | kN | 30 |
Speed range | ||
Speed | km/h | 0-7.5 |
Wheel base | mm | 2150 |
Grade ability | 20% | |
Min. turning radius | mm | 3065/4400 |
Swing angle | ° | 33 |
Steering angle | ° | 10 |
Brake distance | m | ≤2.6 |
Compacting width | mm | 1000 |
Min. ground clearance | mm | 200 |
Engine | ||
model | ZN385Q | |
Cooling type | Wind cool | |
Number of cylinder | 3 | |
rated turning speed | r/min | 2400 |
Output | kW | 21 |
Fuel consumption | g/kW.h | 245 |
Max. torque | N.m | 92 |
Piston discharge | L | 1.617 |
Dimensions (L*W*H) | mm | 2900*1200*2760 |
If you want more information of XCMG XMR30E small double wheel road roller, please send us an inquiry.
