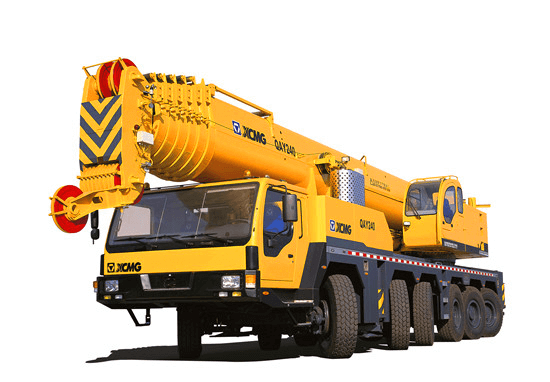

QAY240 All Terrain Crane

specifications

Length

mm

15918

Width

mm

3080

Height

mm

4000

Wheel track

1---2 axle

mm

2750

2---3 axle

mm

1650

3---4 axle

mm

2000

4---5 axle

mm

1650

5---6 axle

mm

1650

Wheel base

mm

2690

Front suspension

mm

2325

Rear suspension

mm

2005

Weight data

Total weight in   traveling

kg

72000

Crane weight

kg

71870

Axle load

1 axle

kg

12000

2 axle

kg

12000

3 axle

kg

12000

4 axle

kg

12000

5 axle

kg

12000

6 axle

kg

12000

travel

speed

Max speed

km/h

71

Min speed

km/h

2.1

Min turning   diameter

m

24

Min ground   clearance

mm

278

Approach angle

25°

Departure angle

17.9°

Brake distance   (speed 30km/h)

m

10

Max grade   ability

%

48

Noise out of   crane

dB（A）

84

Fuel consumption   (100KM)

L

80

chassis

Engine model

OM502LA

Max output

kW/(r/min)

420/(1800)

Drive model

12×6

Tire

14

Tire numbers

12

Boom   specifications

Max lift

t

240

Min working   radius

m

3

Turning diameter   at tail (counter weight)

mm

4800

Max. lift moment

Base boom

kN·m

7797(132.6t*6m)

Longest Main   boom

kN·m

2940(10t*30m)

Outrigger spam

longitudinal

m

9.625

lateral

m

8.7

Working Height

Base boom

m

12.6

Longest main   boom

m

65.6

Main boom +   jib(12m)

m

78.1

Main boom + jib   (20m)

m

85.7

Boom length

Base boom

m

13.2

Longest main   boom

m

67

Main boom +   jib(12m)

m

79

Main boom + jib   (20m)

m

87

Jib angle

°

0°、15°、30°

speed

Boom up

s

65

extend

s

650

Rotate speed

r/min

1.6

Outrigger   telescopic time

Level outrigger

telescopic

s

50

Pull back

s

40

Vertical   outrigger

telescopic

s

50

Pull back

s

45

Hoist speed（single line）

Main winch

m/min

115

Auxiliary winch

m/min

118

Noise

outside   radiation

Outside Noise

118

Driver radiation

Inside Noise

90
