XE150D Crawler Excavator

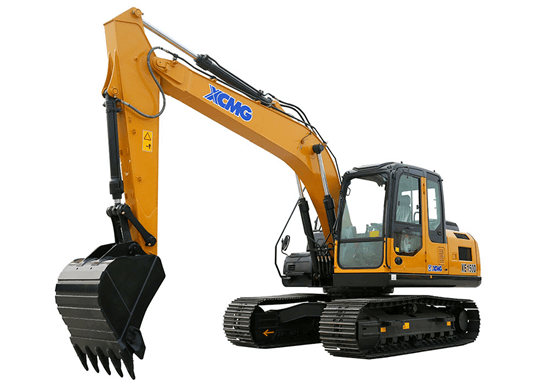

XCMG crawler excavator model XE150D

XCMG crawler excavator

Model: XE150D

Main specifications:

ITEM		Unit	XE150D
	Operating weight	kg	14400
	Standard bucket capacity	m³	0.52-0.61
Engine	Engine Model	/	CUMMINS 4BTAA3.9
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	85.4/2200
	Max. torque/speed	N.m	447/1500
	Displacement	L	3.927
Main Spec.	Travel speed	km/h	5.2/3.4
	Swing speed	r/min	12.3
	Max. gradeability	/	≤35
	Ground pressure	kPa	38
	Max. Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max. traction force	kN	135
HYD System	Main pump	/	2 piston pumps
	Rate flow of main pump	L/min	2×120
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
	Overall length	mm	7801
	Overall width	mm	2590
	Overall height	mm	2880
	Overall width of upper structure	mm	2512
	Track length	mm	3660
	Overall width of undercarriage	mm	2590
	Crawler width	㎜	600
	Track wheelbase	mm	2910
	Crawler gauge	mm	1990
	Clearance under counter weight	mm	964
	Ground clearance	mm	478
	Min. tail swing radius	mm	2325
Work Radius	Max. digging height	mm	8641
	Max. dumping height	mm	6181
	Max. digging depth	mm	5538
	8inch horizontal digging depth	mm	5287
	Max. vertical wall digging depth	mm	4727
	Max. digging reach	mm	8296
	Min. swing radius	mm	2335
Standard	boom length	mm	4600
	bucket arm length	mm	2510
	bucket load	m³	0.61
Options	boom length	mm	/
	bucket arm length	mm	/
	bucket load	m³	0.52 rock bucket
