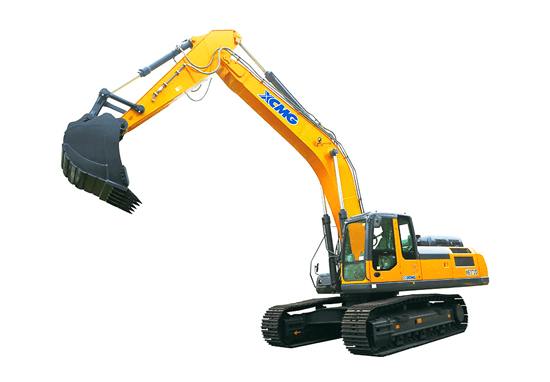

XE370CA Crawler Excavator

XCMG crawler excavator model XE305D

XCMG crawler excavator

Model: XE370CA

Main specifications:

ITEM		Unit	XE370CA
	Operating weight	kg	36600
	Standard bucket capacity	m³	1.4～1.8
Engine	Engine Model	/	ISUZU AA-6HK1XQP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	190.5/2000
	Max. torque/speed	N.m	872.8/1700
	Displacement	L	7.79
Main Spec.	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9.7
	Max. grade ability	/	≤35
	Ground pressure	kPa	66.6
	Max.Bucket digging force	kN	242
	Max.arm crowd force	kN	207
	Max.traction force	kN	285
HYD System	Main pump	/	2 piston pumps
	Rate flow of main pump	L/min	2×320
	Max pressure of prime relief valve	MPa	31.5/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	27.5
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	630
	Hydraulic tank capacity	L	320
	Engine lubrication	L	28
	Overall length	mm	11386
	Overall width	mm	3190
	Overall height	mm	3530
	Overall width of upper structure	mm	2950
	Track length	mm	5035
	Overall width of undercarriage	mm	3190
	Crawler width	㎜	600
	Track wheelbase	mm	4040
	Crawler gauge	mm	2590
	Clearance under counter weight	mm	1197
	Ground clearance	mm	500
	Min.tail swing radius	mm	3570
Work Radius	Max. digging height	mm	10123
	Max. dumping height	mm	6947
	Max. digging depth	mm	6927
	8inch horizontal digging depth	mm	6709
	Max. vertical wall digging depth	mm	5312
	Max. digging reach	mm	10470
	Min. swing radius	mm	4424
Standard	boom length	mm	6400
	bucket arm length	mm	2670
	bucket load	m³	1.6
Options	boom length	mm	/
	bucket arm length	mm	2900/3200/4000
	bucket load	m³	1.4/1.5 rock bucket 1.8earth bucket
