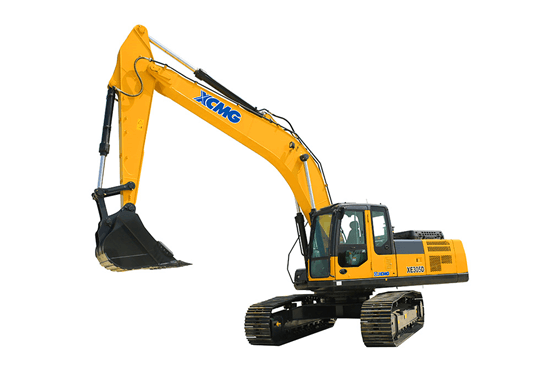

XE305D Crawler Excavator

XCMG crawler excavator model XE305D

XCMG crawler excavator

Model: XE305D

Main specifications:

ITEM		Unit	XE305D
	Operating weight	kg	30500
	Standard bucket capacity	m³	1.27-1.6
Engine	Engine Model	/	ISUZU AA-6HK1XQP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	169/2050
	Max. torque/speed	N.m	872.8/1700
	Displacement	L	7.79
Main Spec.	Travel speed	km/h	5.5/3.2
	Swing speed	r/min	10.4
	Max. gradeability	/	≤30
	Ground pressure	kPa	56
	Max.Bucket digging force	kN	198
	Max.arm crowd force	kN	180
	Max.traction force	kN	290
HYD System	Main pump	/	2 piston pumps
	Rate flow of main pump	L/min	2×280
	Max pressure of prime relief valve	MPa	34.3/37.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	26.5
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	550
	Hydraulic tank capacity	L	320
	Engine lubrication	L	35
	Overall length	mm	10697
	Overall width	mm	3190
	Overall height	mm	3510
	Overall width of upper structure	mm	2882
	Track length	mm	4726
	Overall width of undercarriage	mm	3190
	Crawler width	㎜	600
	Track wheelbase	mm	3813
	Crawler gauge	mm	2590
	Clearance under counter weight	mm	1150
	Ground clearance	mm	495
	Min.tail swing radius	mm	3195
Work Radius	Max. digging height	mm	10146
	Max. dumping height	mm	7250
	Max. digging depth	mm	7200
	8inch horizontal digging depth	mm	6520
	Max. vertical wall digging depth	mm	5362
	Max. digging reach	mm	10665
	Min. swing radius	mm	7318
Standard	boom length	mm	6200
	bucket arm length	mm	2900
	bucket load	m³	1.4
Options	boom length	mm	/
	bucket arm length	mm	/
	bucket load	m³	/
