XE35U Crawler Excavator

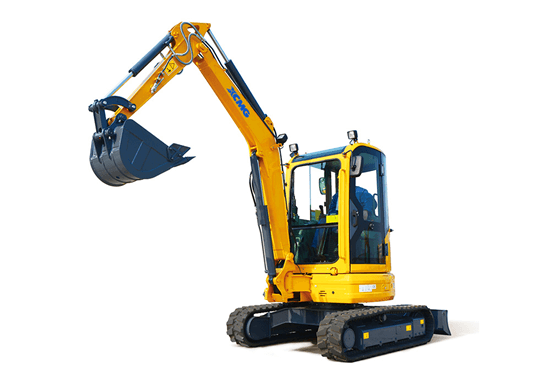

XCMG mini crawler excavator model XE35U

XCMG Crawler Excavator

Model: XE35U

Main specifications:

ITEM		Unit	XE35U
	Operating Weight	kg	4200
	Standard bucket capacity	m³	0.11
Engine	Engine Model	/	4TNV88-BSBFC
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	21.4/2400
	Max. torque/speed	N.m	141.7/1320
	Displacement	L	2.19
Main Spec.	Travel speed	km/h	4.2/2.6
	Swing speed	r/min	13.5
	Max. gradeability	/	30
	Ground pressure	kPa	36.3
	Max.Bucket digging force	kN	27.6
	Max.arm crowd force	kN	19.3
	Max.traction force	kN	33.9
HYD System	Main pump	/	JAPAN NACHI
	Rate flow of main pump	L/min	1×110+11
	Max pressure of prime relief valve	MPa	21
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	65
	Hydraulic tank capacity	L	70
	Engine lubrication	L	7.4
	Overall length	mm	5455
	Overall width	mm	1650
	Overall height	mm	2440
	Overall width of upperstructure	mm	1500
	Overall width of undercarriage	mm	1635
	crawler width	㎜	300
	Tumbler distance	mm	1721
	Crawler gauge	mm	1335
	Clearance under counter weight	mm	578
	Ground clearance	mm	350
	Dozer black(width/height)	mm	1650/300
Work Radius	Max. digging height	mm	5215
	Max. dumping height	mm	3700
	Max. digging depth	mm	3060
	Max. vertical wall digging depth	mm	2580
	Max. digging reach	mm	5415
	Min. swing radius	mm	2385
	Min. tail swing radius	mm	1490
	Max. dozer lifting height	mm	255
	Max. dozer cutting depth	mm	375
Standard	boom length	mm	2795
	bucket arm length	mm	1600
	bucket load	m³	0.12
Options	bucket load	m³	/
Options	bucket load	m³	/
