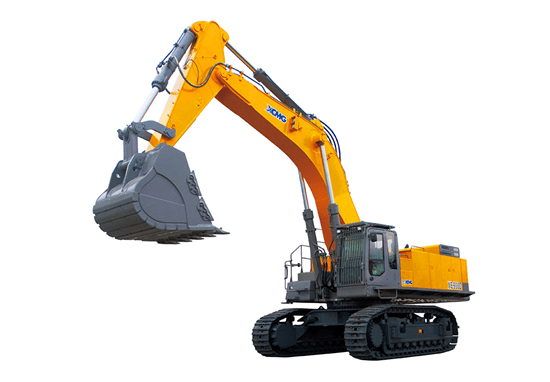

XE900D Crawler Excavator

XCMG crawler excavator model XE900D

XCMG crawler excavator

Model: XE900D

Main specifications:

ITEM		Unit	XE900D
	Operating weight	kg	89600
	Standard bucket capacity	m³	3.5～60
Engine	Engine Model	/	Cummins QSX15
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	399/2100
	Max. torque/speed	N.m	2365/1400
	Displacement	L	15
Main Spec.	Travel speed	km/h	3.9/2.7
	Swing speed	r/min	7.3
	Max. gradeability	/	30
	Ground pressure	kPa	131
	Max.Bucket digging force	kN	480
	Max.arm crowd force	kN	370
	Max.traction force	kN	629
HYD System	Main pump	/	2 piston pumps
	Rate flow of main pump	L/min	2×521
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	30
	Max pressure of pilot system	MPa	3.9
Dimensions	Fuel tank capacity	L	1230
	Hydraulic tank capacity	L	760
	Engine lubrication	L	48
	Overall length	mm	13570
	Overall width	mm	4550
	Overall height	mm	5090
	Overall width of upperstructure	mm	3350
	Track length	mm	5840
	Overall width of undercarriage	mm	4150
	Crawer width	㎜	650
	Track wheelbase	mm	4545
	Crawer gauge	mm	2960/3500
	Clearance under counter weight	mm	1680
	Ground clearance	mm	880
	Min.tail swing radius	mm	4700
Work Radius	Max. digging height	mm	12060
	Max. dumping height	mm	8070
	Max. digging depth	mm	7250
	8inch horizonal digging depth	mm	7100
	Max. vertical wall digging depth	mm	4200
	Max. digging reach	mm	12330
	Min. swing radius	mm	5200
Standard	boom length	mm	7100
	bucket arm length	mm	2945
	bucket load	m³	3.5 rock
Options	boom length	mm	/
	bucket arm length	mm	/
	bucket load	m³	4.5 rock bucket
