XE270D Crawler Excavator

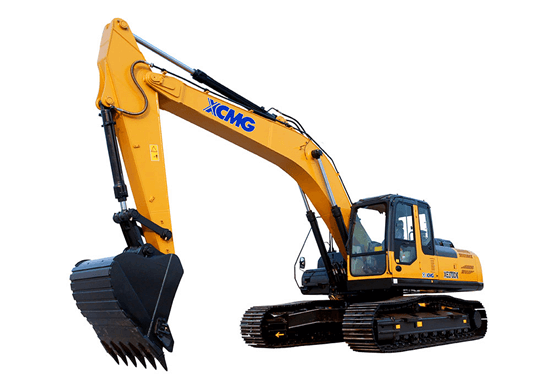

XCMG crawler excavator model XE270D

  • XE270D
  • XCMG
Quantity:

XCMG crawler excavator

Model: XE270D





Main specifications:

ITEM

Unit

XE270D


Operating weight

kg

26400

Standard bucket capacity

1.051.4

Engine

Engine Model

/

ISUZU CC-6BG1TRP-05

Direct injection

/

Four strokes

/

Water cooling

/

Turbo charged

/

Air to air intercooler

/

No. of cylinders

/

6

Rated power/speed

kw/rpm

150/2050

Max. torque/speed

N.m

637/1800

Displacement

L

6.494

Main
  Spec.

Travel speed

km/h

5.9/4.0

Swing speed

r/min

11.3

Max. gradeability

/

35

Ground pressure

kPa

50.1

Max.Bucket digging force

kN

185

Max.arm crowd force

kN

125

Max.traction force

kN

194

HYD
  System

Main pump

/

2 piston pumps

Rate flow of main pump

L/min

2×256

Max pressure of prime relief   valve

MPa

34.3/37

Max pressure of travel   system

MPa

34.3

Max pressure of swing system

MPa

28

Max pressure of pilot system

MPa

3.9

Dimensions

Fuel tank capacity

L

400

Hydraulic tank capacity

L

240

Engine lubrication

L

25

Overall length

mm

10160

Overall width

mm

3190

Overall height

mm

3100

Overall width of   upperstructure

mm

2830

Track length

mm

4640

Overall width of   undercarriage

mm

3190

Crawler width

600

Track wheelbase

mm

3842

Crawler gauge

mm

2590

Clearance under counter   weight

mm

1100

Ground clearance

mm

485

Min.tail swing radius

mm

2985

Work
  Radius

Max. digging height

mm

10095

Max. dumping height

mm

6810

Max. digging depth

mm

6925

8inch horizontal digging   depth

mm

6750

Max. vertical wall digging   depth

mm

5480

Max. digging reach

mm

10240

Min. swing radius

mm

3850

Standard

boom length

mm

6000

bucket arm length

mm

2960

bucket load

1.2

Options

boom length

mm

/

bucket arm length

mm

2500

bucket load

1.25 earth bucket
  1.05 rock bucket





If you want to know more about XCMG crawler excavator XE270D, please contact us, we will send you its brochures with best quotation.
